Industrial Transformer

• Capacity
• 250 kVA / 500 kVA / 1000 kVA / 2500 kVA

• Coil Material
• Other , High-grade copper or aluminum

• Coil Number
• Other, Multiple depending on specific configuration (Primary & Secondary)

• Coil Structure
• Other, Laminated Core, Enclosed Coil Type

• Cooling Type
• ONAN (Oil Natural Air Natural) or AN (Air Natural)

• Dimension (L*W*H)
• Custom; typical 1600mm x 1200mm x 1800mm

• Efficiency
• Up to 98%

• Frequency (MHz)
• 50-60 Hz

• High Voltage
• Up to 11 kV

• Load Loss
• <1.5% at full load (typical)

• Low Voltage
• Down to 415 V

• Material
• Copper/Aluminum core with insulated windings, steel enclosure

• Operating Temperature
• -10C to +50C

• Output
• Based on voltage step-down/up requirements, typically 415V or 230V output

• Phase
• Three Phase

• Power Scope
• Up to 2500 kVA (customizable)

• Product Type
• Other, Commercial Transformer

• Rated Voltage
• 11 kV / 0.415 kV (example)

• Standard
• IS 2026, IEC 60076

• Usage
• Commercial power distribution and voltage regulation

• Voltage Booster Type
• Other, Step-Up or Step-Down (as per requirement)

• Weight
• Varies with rating; typically 250 kg - 2000 kg

• Capacity
• 50 kVA to 2500 kVA

• Coil Material
• Other , Copper/Aluminum

• Coil Number
• Other, Multiple windings

• Coil Structure
• Other, Toroidal/Layer wound

• Cooling Type
• Air Natural (AN)

• Dimension (L*W*H)
• Varies by specification, e.g. 1100x800x1700 mm

• Efficiency
• Up to 98%

• Frequency (MHz)
• 50/60 Hz

• High Voltage
• Up to 11 kV/22 kV

• Load Loss
• As per IEC/IS standards, typically 2% of rated power

• Low Voltage
• 415 V/690 V

• Material
• Copper/Aluminum windings with epoxy resin insulation

• Operating Temperature
• -25C to +120C

• Output
• Customized output voltage

• Phase
• Three Phase

• Power Scope
• Customizable as per requirement

• Product Type
• Other, Dry-type Transformer

• Rated Voltage
• Specified as per client needs

• Standard
• IS 11171/IEC 60076

• Usage
• Industrial power distribution and voltage regulation

• Voltage Booster Type
• Other, Step-up/Step-down as specified

• Weight
• Subject to capacity - approx. 250 kg - 1200 kg

• Capacity
• 100 kVA - 2500 kVA (as per requirement)

• Coil Material
• Other , Electrolytic copper or aluminum

• Coil Number
• Other, 2 (Primary and Secondary)

• Coil Structure
• Other, Copper or aluminum wound core

• Cooling Type
• ONAN (Oil Natural Air Natural)

• Dimension (L*W*H)
• Varies as per kVA rating; example: 2.1m x 1.2m x 1.9m

• Efficiency
• Up to 98%

• Frequency (MHz)
• 50 Hz

• High Voltage
• 11,000 V (11 kV nominal)

• Load Loss
• As per IS1180 standards, typically 900W to 4200W depending on rating

• Low Voltage
• 433 V

• Material
• High-grade electrical steel and copper/aluminum windings

• Operating Temperature
• -25C to +50C

• Output
• As per rated capacity and voltage specification

• Phase
• Three Phase

• Power Scope
• Typically ranges from 25 kVA to 5000 kVA

• Product Type
• Other, Oil Cooled Distribution Transformer

• Rated Voltage
• 11 kV / 0.433 kV (standard rating, customizable)

• Standard
• IS 1180, IS 2026

• Usage
• Industrial power distribution and voltage regulation

• Voltage Booster Type
• Other, Tapped windings - OLTC or NLTC as per design

• Weight
• Depends on rating; typically 1000 kg - 7000 kg

• Capacity
• 100 kVA - 5000 kVA

• Coil Material
• Other , Copper or aluminum (customizable)

• Coil Number
• Other, Three primary, three secondary coils

• Coil Structure
• Other, Toroidal or core-type, layered windings

• Cooling Type
• Air Natural (AN) or Air Forced (AF)

• Dimension (L*W*H)
• 1800x1000x1800 mm (varies by capacity)

• Efficiency
• 98% or higher

• Frequency (MHz)
• 50/60 Hz

• High Voltage
• Up to 11,000 V

• Load Loss
• 1.8 kW (at typical 1000 kVA rating)

• Low Voltage
• 380 V / 415 V / 690 V (customized as needed)

• Material
• Copper windings, steel frame, epoxy resin insulation

• Operating Temperature
• -15C to +45C

• Output
• Depends on rated voltage (customizable output power)

• Phase
• Other, Three-phase

• Power Scope
• Up to 5000 kVA (customizable)

• Product Type
• Other, Dry-type transformer

• Rated Voltage
• Up to 11 kV (customizable)

• Standard
• IEC 60076, IS 11171

• Usage
• Industrial power distribution and voltage regulation

• Voltage Booster Type
• Other, Standard step-up/step-down transformer

• Weight
• Approx. 900-1800 kg (varies with rating)

• Capacity
• Up to 100 kVA

• Coil Material
• Other , High conductivity copper

• Coil Number
• Other, Single/Three, as per design

• Coil Structure
• Other, Toroidal/ Layer wound

• Cooling Type
• Oil cooled/ Air cooled

• Dimension (L*W*H)
• Varies by rating (ex: 900 x 600 x 1200 mm)

• Efficiency
• 98% approx.

• Frequency (MHz)
• 50 Hz

• High Voltage
• As per customer requirement, max 11kV

• Load Loss
• Minimal (<1% rated output)

• Low Voltage
• 110V / 230V / 400V

• Material
• Copper winding, steel enclosure

• Operating Temperature
• -10C to 50C

• Output
• Variable AC voltage output (0 to rated voltage)

• Phase
• Other, Single Phase/ Three Phase

• Power Scope
• Up to 100 kVA

• Product Type
• Other, Auto-variable Transformer

• Rated Voltage
• 230V / 415V AC

• Standard
• IS 5142/ IS 2026

• Usage
• Voltage regulation for electrical equipment, testing laboratories, and industrial applications

• Voltage Booster Type
• Other, Manual/ Motorized

• Weight
• Approx. 150-500 kg (depending on capacity)

• Capacity
• 100 kVA - 2500 kVA variants available

• Coil Material
• Other , High Purity Copper

• Coil Number
• Other, Three (for each phase)

• Coil Structure
• Other, Layered Cylindrical Coils

• Cooling Type
• Oil-cooled (ONAN/OFWF options)

• Dimension (L*W*H)
• Customizable, approx. 1600mm x 1000mm x 1700mm

• Efficiency
• Up to 98%

• Frequency (MHz)
• 50-60 Hz

• High Voltage
• Up to 33 kV

• Load Loss
• Low, <1% of rated output

• Low Voltage
• Up to 690 V

• Material
• Copper and high-grade insulation materials

• Operating Temperature
• -25C to +85C

• Output
• Varies per model, typically up to several MVA

• Phase
• Three Phase

• Power Scope
• Can be customized as per requirement

• Product Type

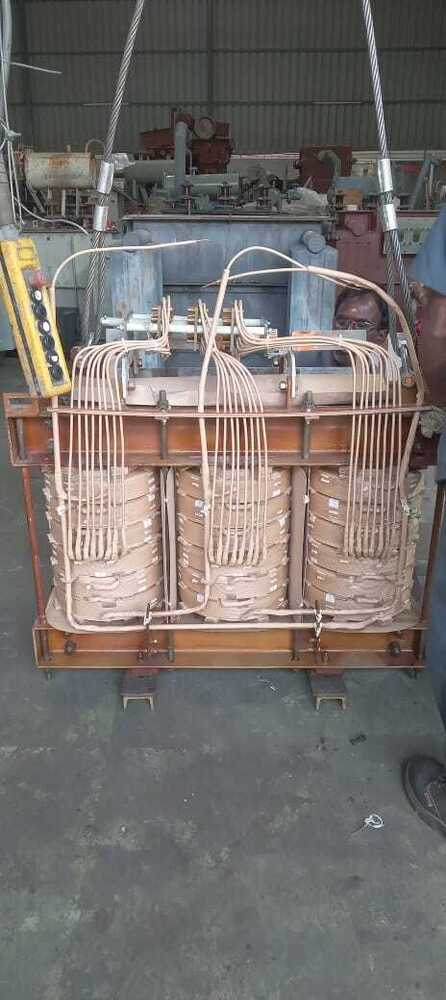

• Other, Oil-cooled Core Coil Assembly Transformer

• Rated Voltage
• 11 kV / 0.415 kV (customizable)

• Standard
• IS 2026 / IEC 60076 / Customized

• Usage
• Industrial Power Distribution

• Voltage Booster Type
• Other, Step Up / Step Down

• Weight
• Approx. 800 kg to 2000 kg depending on rating

• Capacity
• Up to 2500 kVA (customizable)

• Coil Material
• Other , Copper/Aluminum

• Coil Number
• Other, Three (Primary, Secondary, Tertiary if required)

• Coil Structure
• Other, Toroidal or laminated core

• Cooling Type
• AN (Air Natural), AF (Air Forced)

• Dimension (L*W*H)
• Depends on rating; e.g. 1800x1200x1800 mm

• Efficiency
• Up to 98%

• Frequency (MHz)
• 0.05 (50 Hz)

• High Voltage
• Up to 33,000 V

• Load Loss
• Typically 1-3% of rated power

• Low Voltage
• 400 V (default, other voltages available)

• Material
• Copper windings, laminated silicon steel core

• Operating Temperature
• -25C to +40C ambient

• Output
• Custom output as per requirement (typical ranges: 415V, 433V, 690V)

• Phase
• Three Phase

• Power Scope
• Typically up to 2500 kVA (customizable)

• Product Type
• Other, Dry-type Transformer

• Rated Voltage
• Primary: 11kV/22kV/33kV, Secondary: 0.4kV/0.69kV (customizable)

• Standard
• IS 11171, IEC 60076

• Usage
• Electrical power distribution and voltage transformation

• Voltage Booster Type
• Other, Step-up/Step-down (as required)

• Weight
• Varies with kVA rating; typical 300 kg to 3500 kg

• Capacity
• 100 kVA to 2500 kVA

• Coil Material
• Other , Copper/Aluminum

• Coil Number
• Other, Three coils (primary and secondary for each phase)

• Coil Structure
• Laminated Core

• Cooling Type
• ONAN (Oil Natural Air Natural)

• Dimension (L*W*H)
• Approx. 2300*1100*1900 mm

• Efficiency
• 98% (typical)

• Frequency (MHz)
• 50/60 Hz

• High Voltage
• Up to 33 kV

• Load Loss
• As per IEC standard, typically 2% of rated capacity

• Low Voltage
• 0.415 kV (or customized)

• Material
• High-grade silicon steel core and copper/aluminum windings

• Operating Temperature
• -25C to +50C

• Output
• As per requirement, typically 415 V

• Phase
• Other, Three-phase

• Power Scope
• Up to 2500 kVA (customized)

• Product Type
• Other, Oil-immersed distribution transformer

• Rated Voltage
• 11 kV / 0.415 kV, customizable

• Standard
• IS 1180/IEC 60076

• Usage
• Industrial power distribution

• Voltage Booster Type
• Other, Off-Load Tap Changer/On-Load Tap Changer (OLTC)

• Weight
• Approx. 2500 kg (varies by capacity)
