Power Transformer

Introducing our high-performance Power Transformer, expertly engineered and manufactured by our experienced team as a leading manufacturer, supplier, and trader with over 1 year of unwavering commitment to quality. In our range, you will find both Dry-type Power Transformer and the popular 3-phase Dry-type Power Transformer, designed to deliver astounding performance in power distribution applications across various sectors and settings. When you deal with us, you benefit from incomparable reliability, the best insulation system for maximum safety, low maintenance costs, superior energy efficiency, compact and robust construction, and eco-friendly operation-making our transformers an ideal choice for those seeking excellence and innovation. Our Power Transformers are designed to meet the most demanding operational requirements, offering optimal protection and longevity, even under challenging conditions. With supply ability extending across All India, our solutions remain among the best and most trusted options available, standing out for their superior durability, advanced technology, and trusted after-sales support. Choose our Power Transformers and experience the highest standards in performance and value within the domestic market.

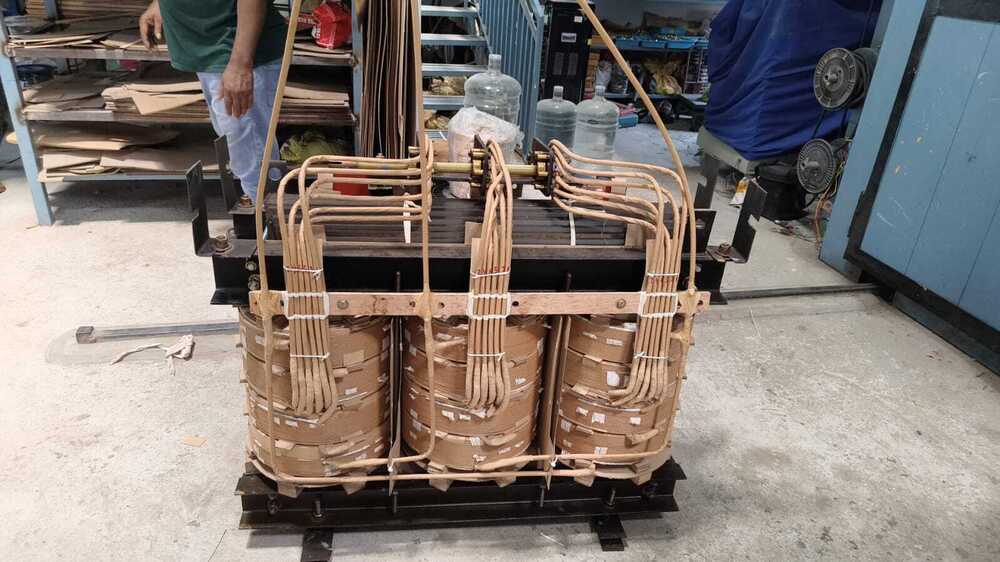

3-phase Dry-type Power Transformer

3-phase Dry-type Power Transformer

MOQ : 1 Unit

Capacity
Customizable (commonly 100 kVA to 2500 kVA)

Coil Material
Other , Copper/Aluminum

Coil Number
Other, Triple coil (for 3 phases)

Coil Structure
Other, Toroidal Winding

Cooling Type
Air Cooled (AN) / Air Forced (AF)

Dimension (L*W*H)
As per design (approx. 1800x1000x2000 mm for 1000 kVA unit)

Efficiency
98%

Frequency (MHz)
50 Hz / 60 Hz

High Voltage
Up to 33 kV

Load Loss
As per IEC standard

Low Voltage
400 V / 415 V

Material
Copper, Epoxy Resin

Operating Temperature
-25C to +40C

Output
Varies as per design / rating

Phase
Three Phase

Power Scope
Up to 2500 kVA (customizable)

Product Type
Other, Dry-type Power Transformer

Rated Voltage
11 kV / 22 kV / 33 kV

Standard
IEC 60076 / IS 2026

Usage
Electrical power distribution

Voltage Booster Type
Other, Step-up/Step-down transformer

Weight
Depends on rating (approx. 800-3000 kg)

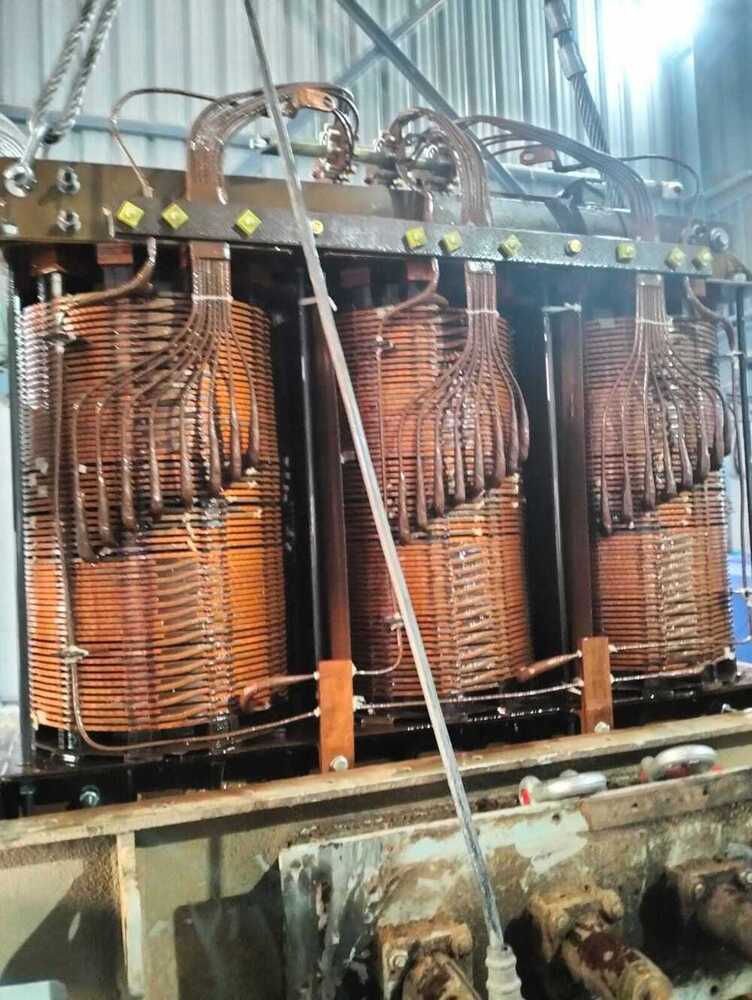

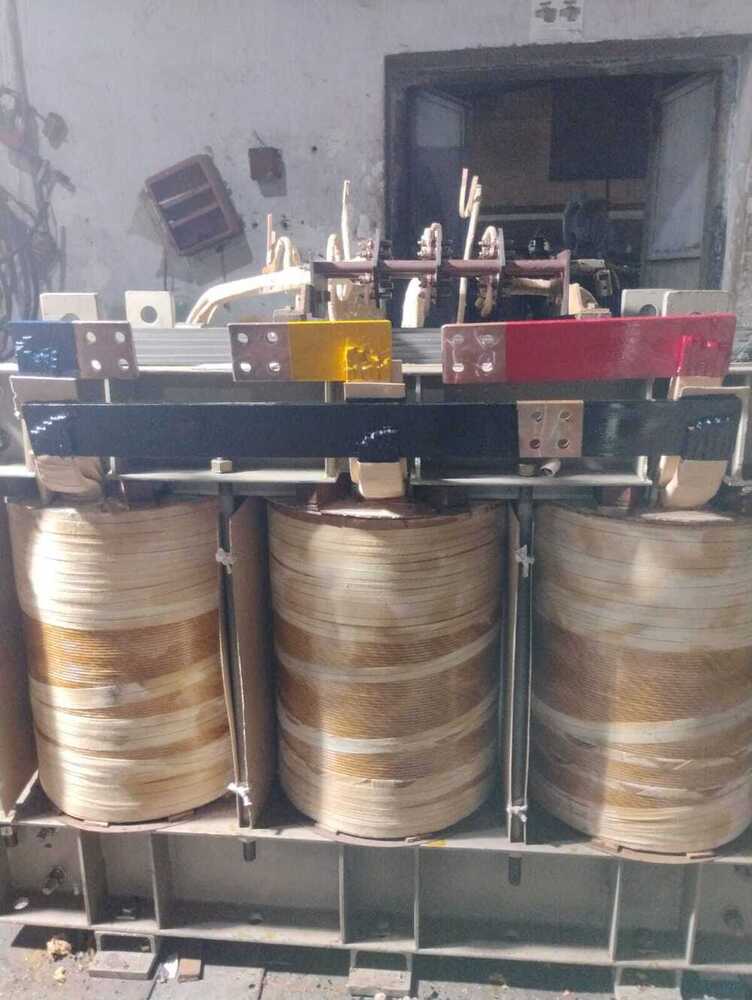

Dry-type Power Transformer

Dry-type Power Transformer

MOQ : 1 Unit

Capacity
As per requirement, e.g., 1000 kVA

Coil Material
Other , Copper or Aluminum (commonly Copper)

Coil Number
Other, Two or more (primary and secondary)

Coil Structure
Other, Layer Wound

Cooling Type
AN (Air Natural), AF (Air Forced)

Dimension (L*W*H)
Customized, e.g., 1200mm x 800mm x 1700mm (varies significantly)

Efficiency
98% or higher

Frequency (MHz)
50/60 Hz

High Voltage
Up to 36,000 V

Load Loss
Depends on rating, typically < 1.5% of capacity

Low Voltage
As per configuration, e.g., 400 V / 415 V

Material
Copper windings, silicon steel core, epoxy resin insulation

Operating Temperature
Up to 155C (insulation class F/H)

Output
Depends on specific application requirements

Phase
Other, Three Phase or Single Phase (depending on model)

Power Scope
Typically from 50 kVA to 2500 kVA

Product Type
Other, Dry-type Power Transformer

Rated Voltage
Up to 36 kV

Standard
IS 11171, IEC 60076

Usage
Power distribution and voltage regulation

Voltage Booster Type
Other, Step up or Step down applications

Weight
Varies by rating, typically 300 kg to 2500 kg
